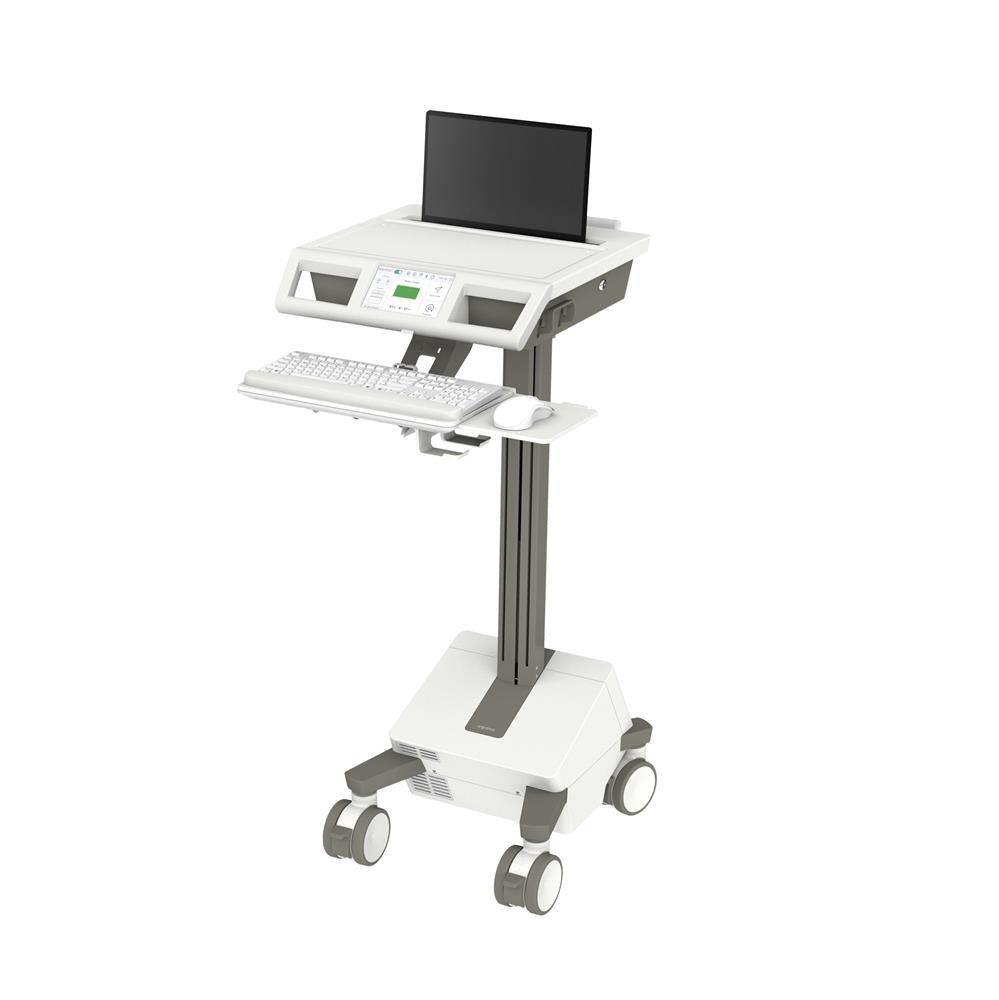

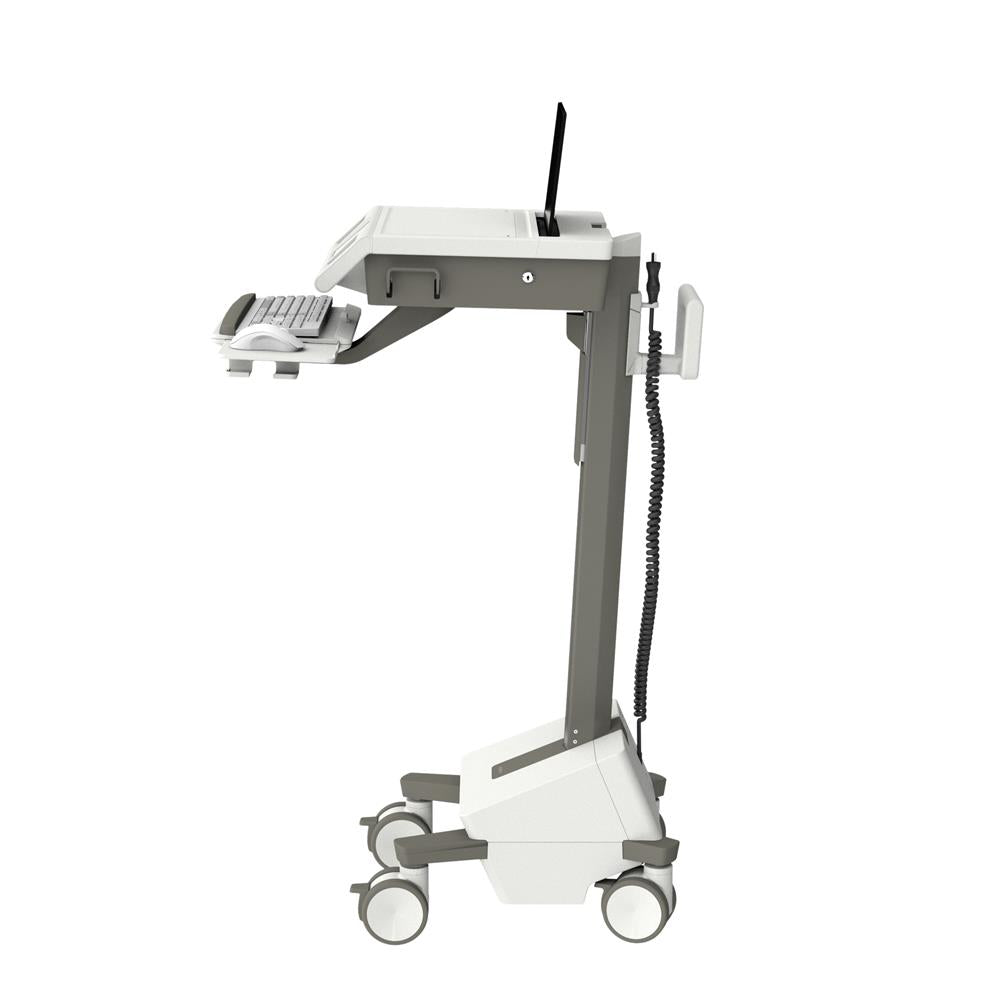

Ergotron Mosaic™ Laptop Cart, AC Power, US/CA/MX

Mosaic provides flexibility, customization and scalability for healthcare systems seeking a new standard. Configure a workstation-on-wheels that matches the needs of nurses to do their jobs comfortably, safely and efficiently. Modular accessories, an expansive adjustment range and an easy-to-service design enable quick redeployment as future workflows and requirements evolve.

Note: Mosaic is a modular platform that is highly customizable. CSI representatives are ready to assist you in configuring a solution that matches your workflow requirements.

Key Features

• Open-architecture design accommodates future hardware upgrades
• RhythmConnect™ cloud-based connectivity for proactive cart management
• Integrated 7-inch touchscreen controls all lights and power system on/off; displays battery-charge levels and alerts operator when battery is low; includes issue-reporting submission interface; plus drawer-lock control when drawers are installed
• Badge-scanning location accommodates customer-supplied RFID

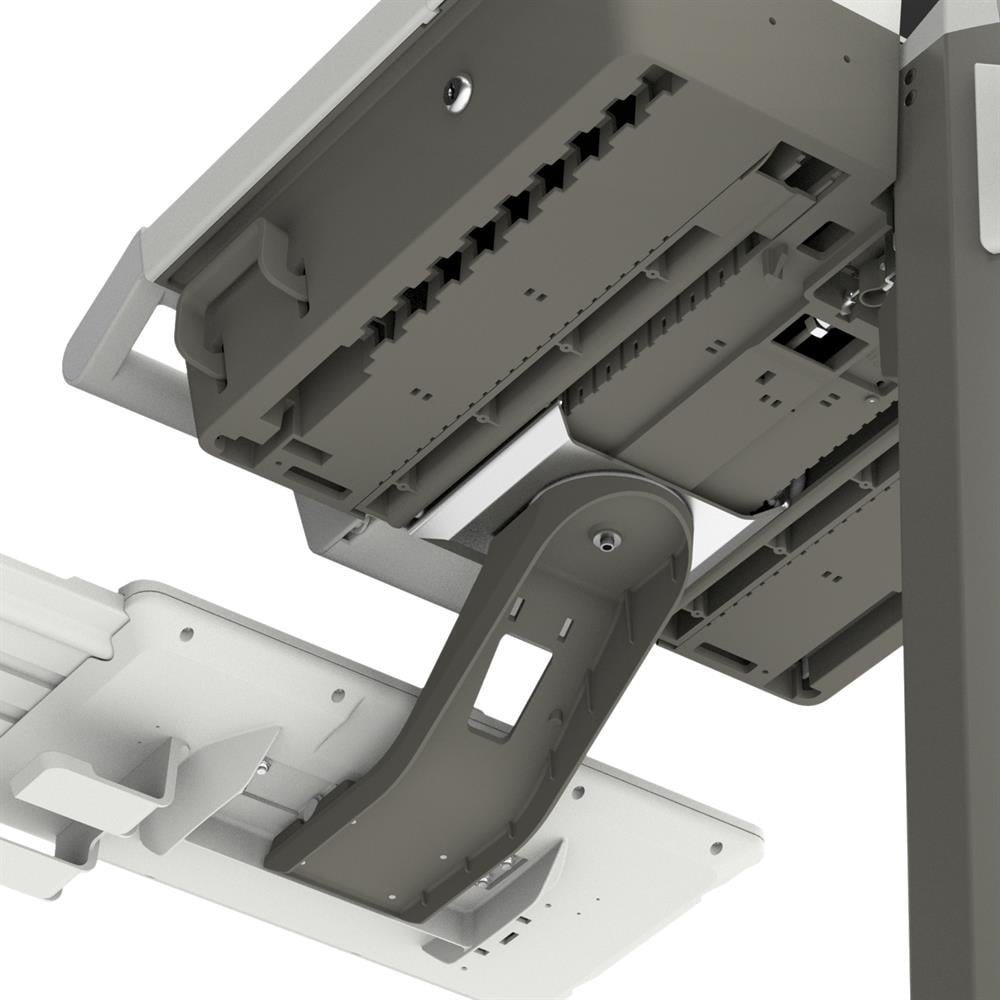

• Multiple interfaces for attaching accessories: vertical rear T-slot; channels under technology enclosure; optional horizontal T-slots on back of technology enclosure

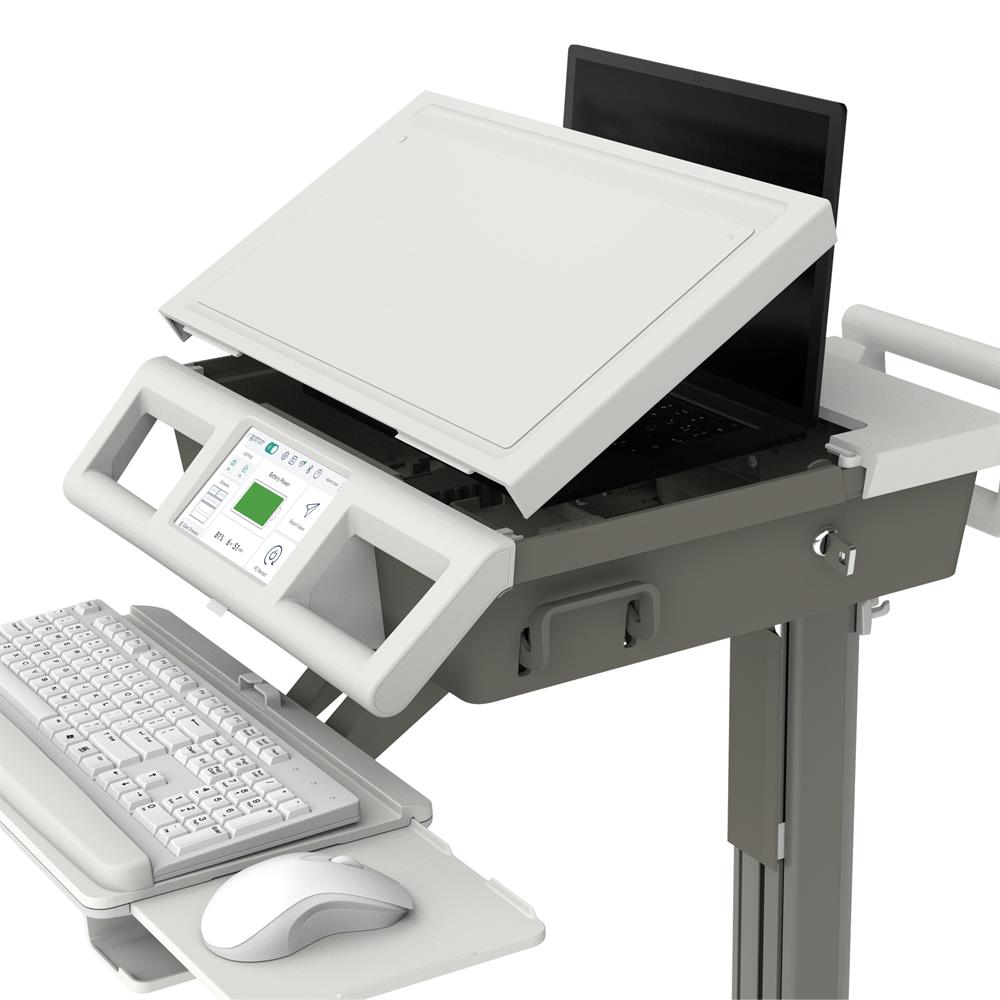

• Technology enclosure is outfitted with a removable, key-locked top worksurface for easy yet secure access to contents; holds laptop and excess cables; enables data and power connectivity with USB hub and power receptacles
• Technology enclosure interior dimensions: 16.4" x 12.6" x 3" (41.5 x 32 x 7.5 cm)

Electrical System

• Output: 120VAC/60Hz, 150VA, 150W
• Grounded Plug: NEMA 5-15P Hospital Grade
• Integrated 45Ah Lithium Iron Phosphate (LiFe) battery
• emperature Range: operating 10° to 30°C (50° to 86°F); storage -20°C to 50°C (-4° to 122°F)
• Relative Humidity Range: 5% to 95% (non-condensing)

True Ergonomics

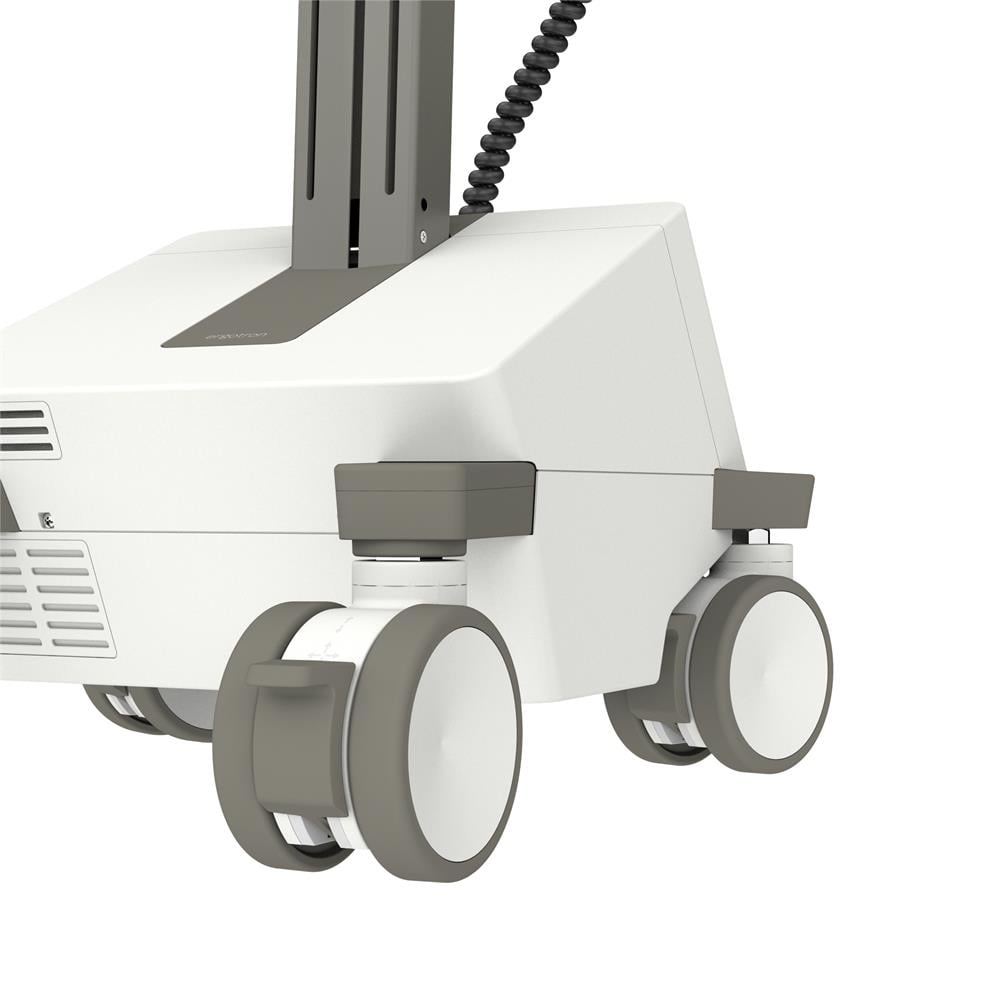

• Dual-wheel 5" (13 cm) casters for easy push/pull mobility (all locking, 1 tracking)

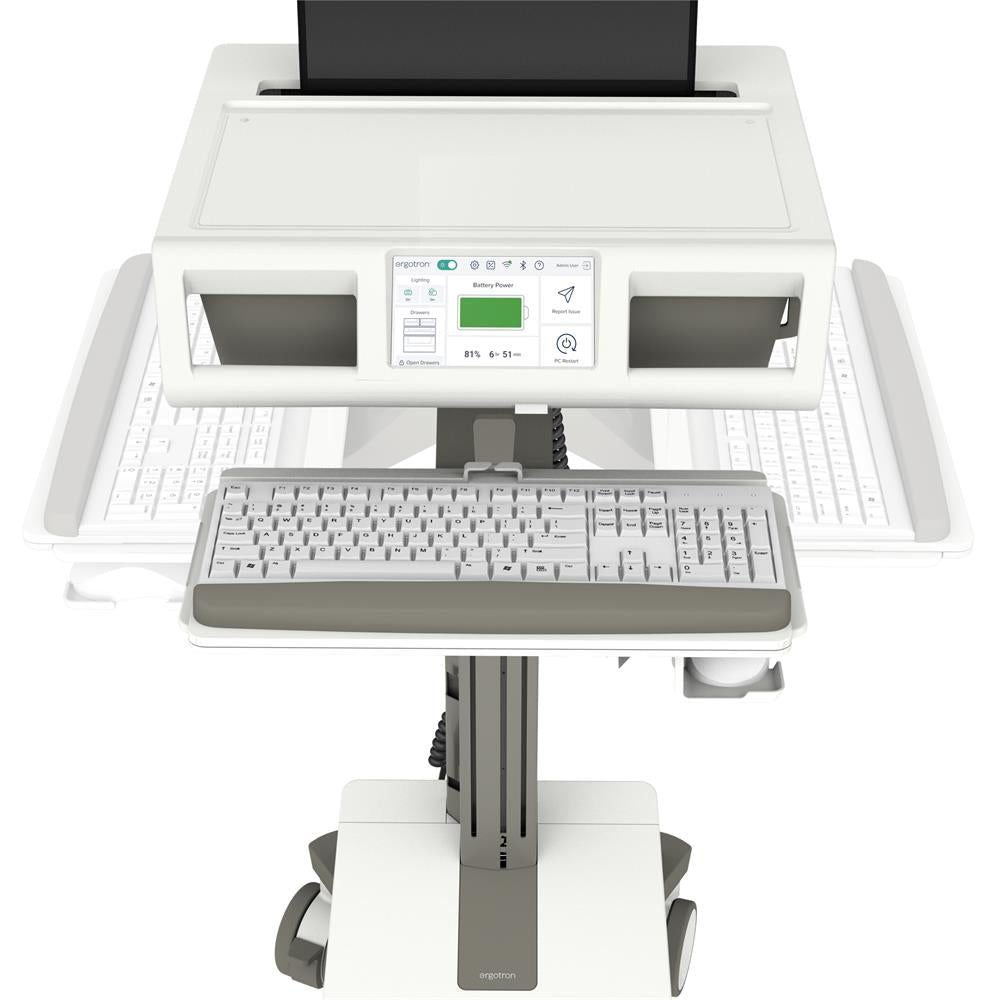

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity

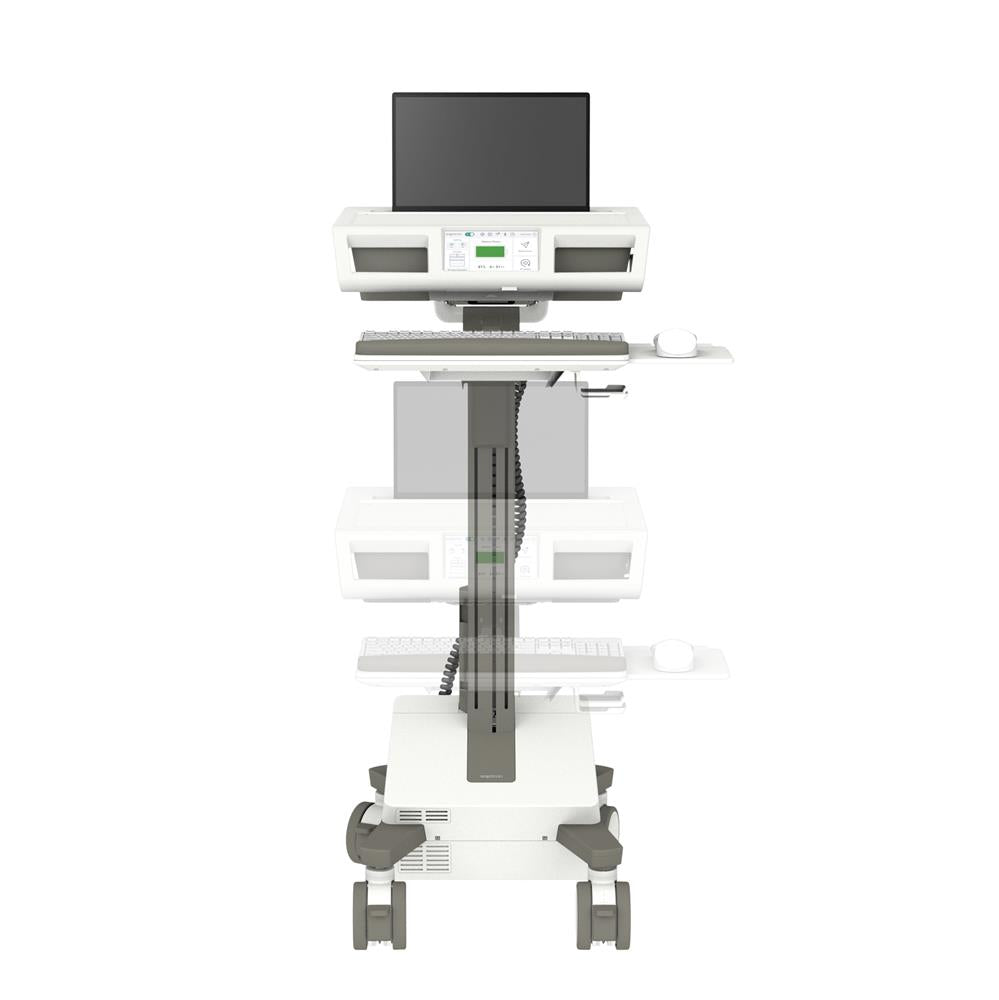

• Optimally designed for users 5'0" to 6'1" (152 to 185 cm) tall to work comfortably when sitting or standing, even for prolonged periods. The exceptional height adjustment range means shorter and taller users can use the same workstation without compromising productivity
• Patented Constant Force™motion technology reduces forces required to adjust cart: change worksurface height and keyboard position with minimum effort

Safety

• The entire power system and the FULL cart are certified to ANSI/AAMI ES60601-1 and CAN/CSA-C22.2 No. 60601-1. Complies with EMI limits of FCC Part 15 Class A
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
• Designed to meet guidelines established by the American National Standards Institute for computer use

Warranty: Five years for mechanical and electrical components; for onboard LiFe battery, 5 years against manufacturer defects and 3 years for 70% rated capacity (requires performance evaluation with RhythmConnect software)
