Ergotron LX Pro Dual Stacking Arm

$540.00

Shipping calculated at checkout.

Attaching Option

2-Piece Clamp Grommet Mount

Color

Black White Dark Grey

Product variants

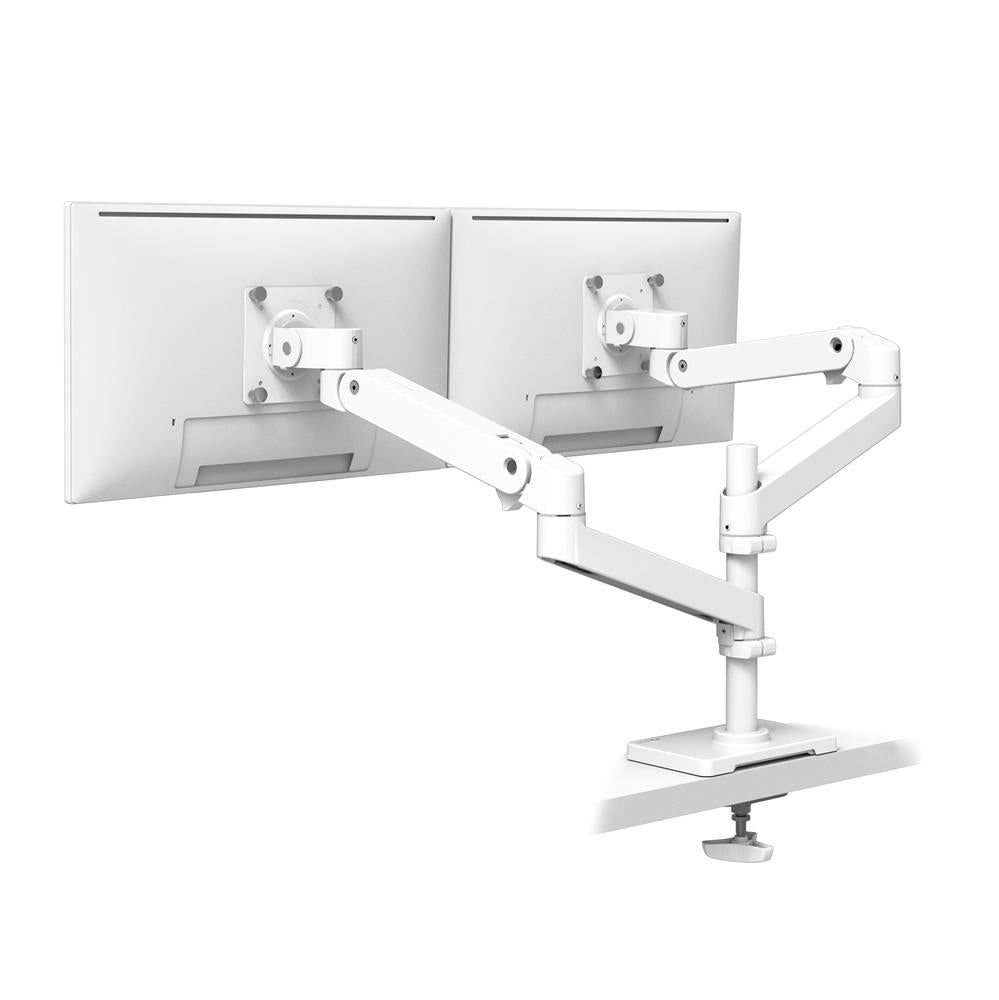

Ergotron LX Pro Dual Stacking Arm

Introducing the LX Pro—an evolution of the industry-leading LX design. LX Pro combines everything you love about the LX arm with modern enhancements that further streamline installation and maximize ergonomics. It's bound to become the preferred solution when upgrading a workstation. Experience the perfect blend of style and functionality!

Benefits and Features:

Elevate Comfort - More motion with less effort for best-in-class ergonomic positioning
Boost Productivity - Lift, tilt and turn your monitor for perfect views that hone your focus
Modular Architecture - Flexible design and accessory add-ons for every configuration
Maximize Workspace - Raises a screen off the desktop from a compact base
Sleek Build - Improved cable management and streamlined look enhance your work area
Easy Installation - Fewer parts and intuitive adjustment make setup effortless

10 Year Warranty

Specifications Details

Download
Product Sheet

Download
Installation Instructions

Download
Specifications

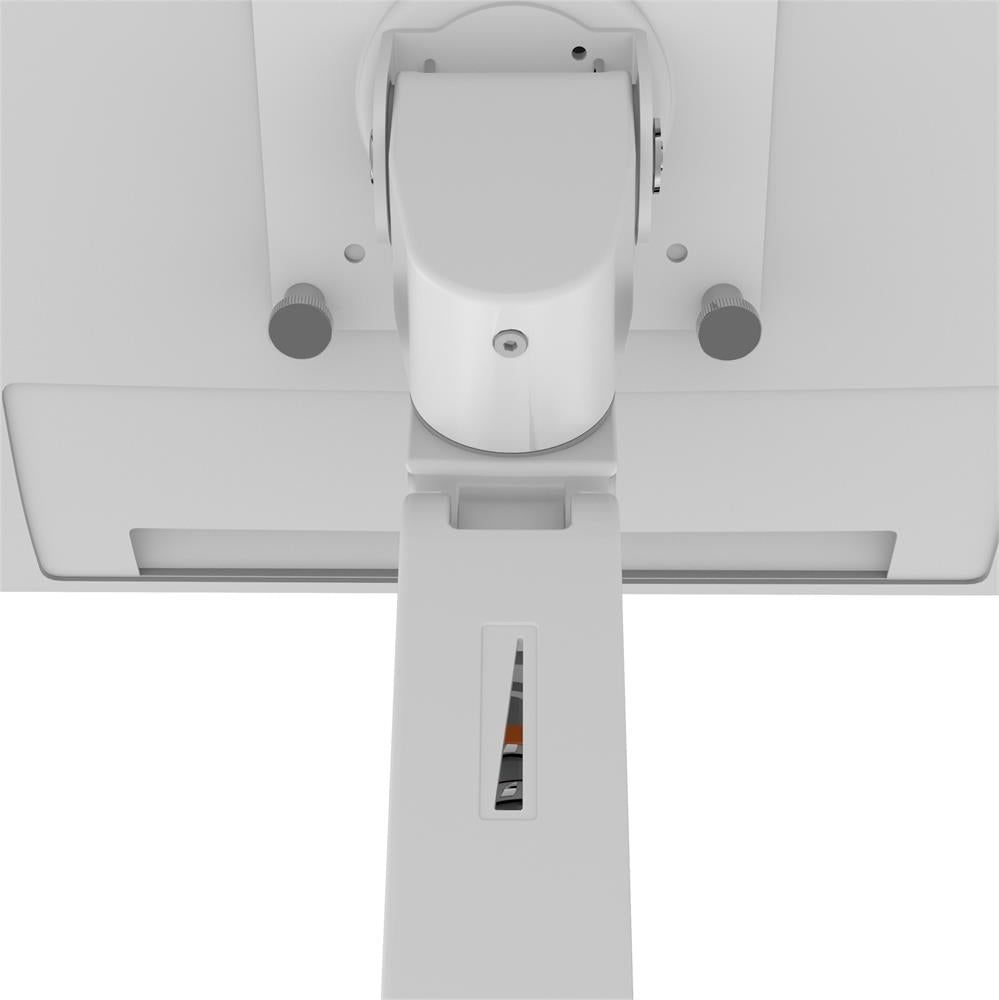

- A tension-level indicator provides a visual reference when counterbalancing an arm with its device; when installing multiple arms, note the first arm’s setting for quicker adjustment
- Built-in rotation-stop on the extension can be engaged to limit side-to-side motion to deter impacts with wall

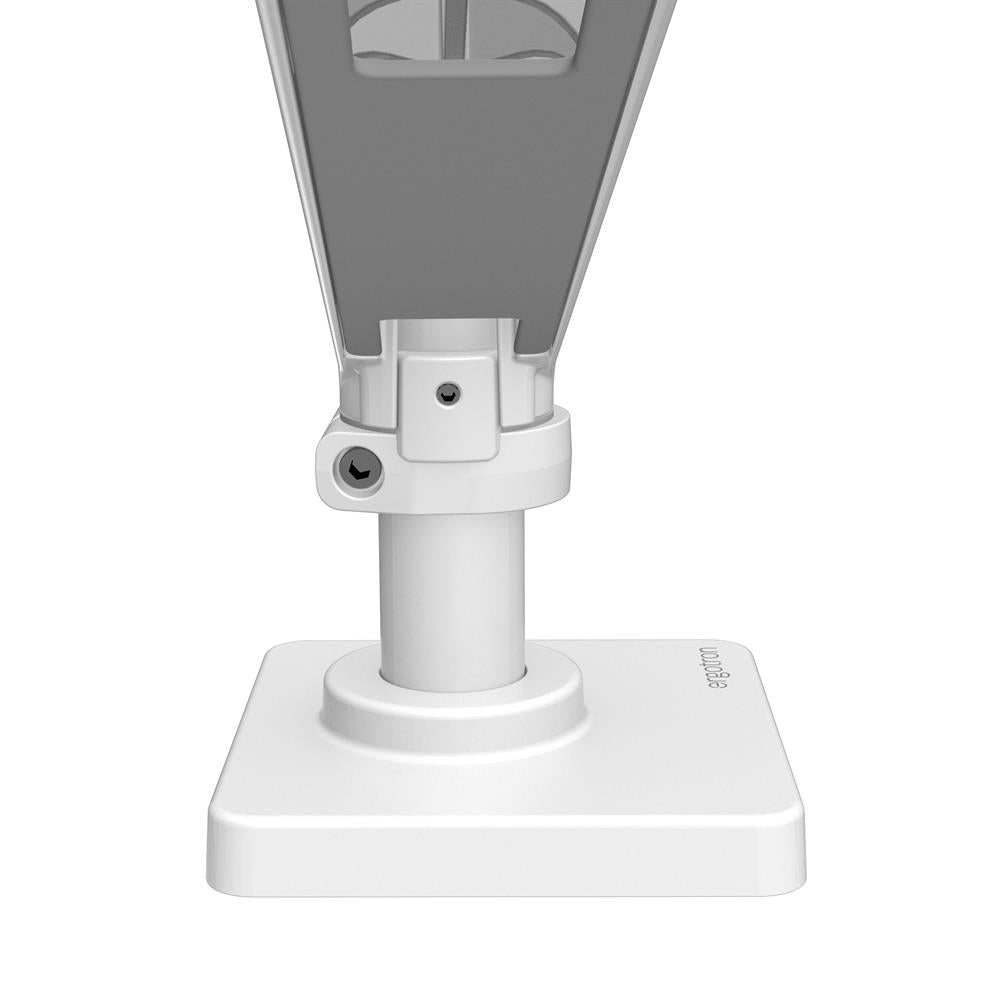

- Includes two arms, two extensions, two monitor pivots, grommet mount, large base, 12" pole, two pole collars, attachment hardware
- Grommet mount attaches through surface hole up to 2.4" (60 mm) deep and 0.4" to 2" (10 to 50 mm) in diameter
- * Weight Capacity: Individual monitor weight = 4–22 lbs (1.8–10 kg). Total weight capacity = 8–44 lbs (3.6–20 kg). Monitor depth greater than 3.6" (9 cm) may diminish capacity

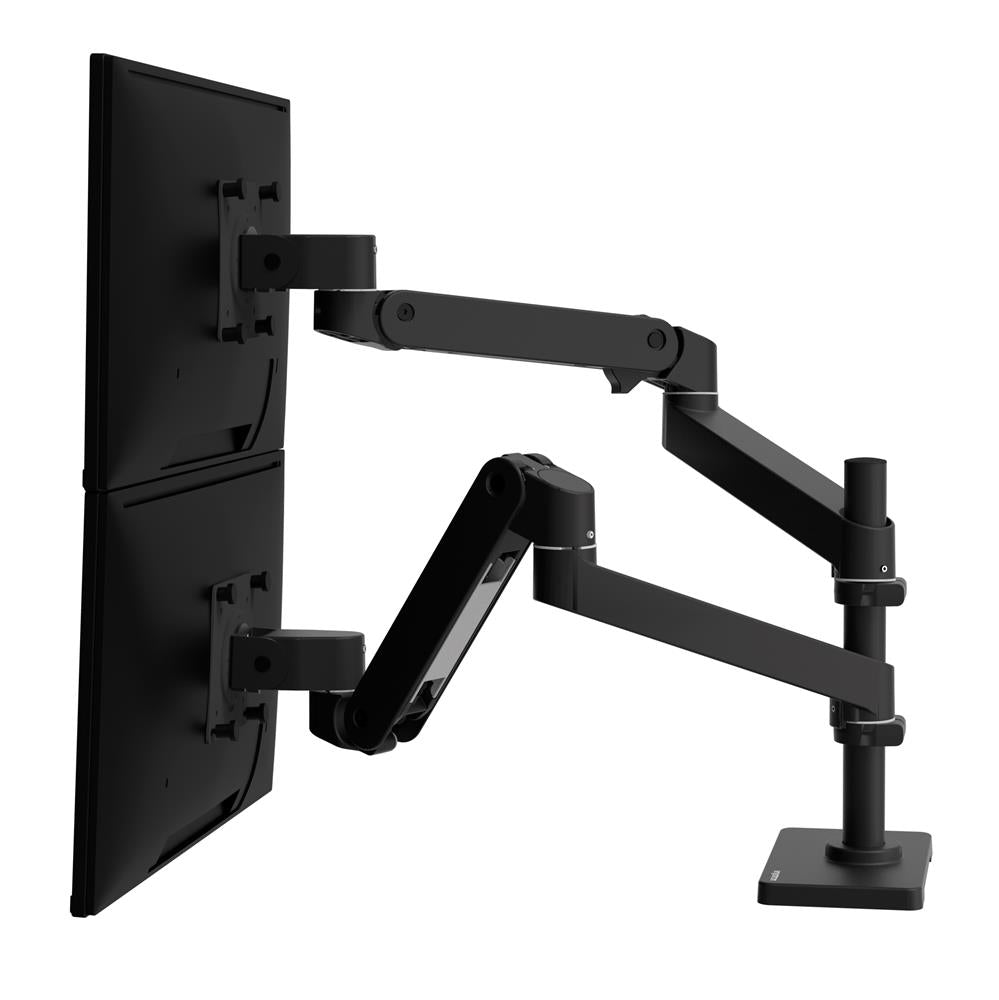

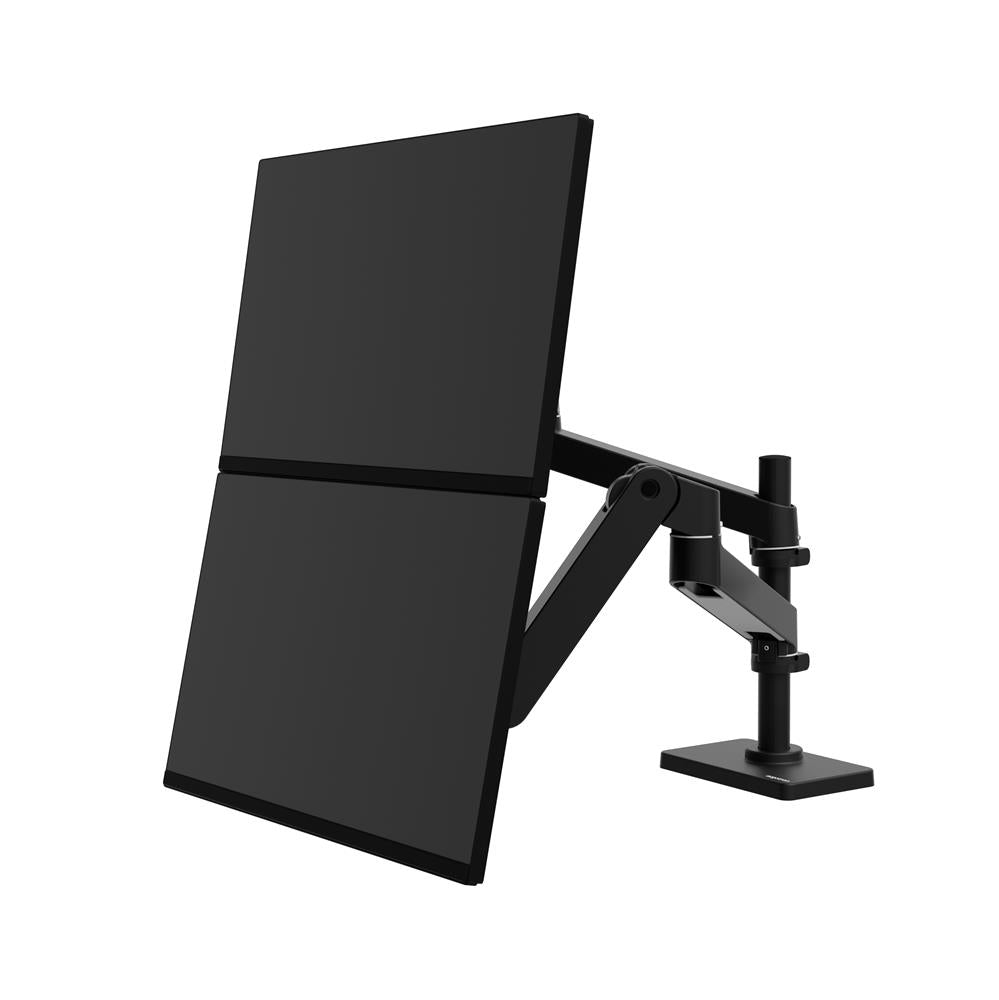

- Screen size ≤24" LCD screen size is approximate. This size may be exceeded if display does not surpass weight capacity. Larger displays’ motion range may be limited. To facilitate stacking of monitors, maximum outside height of display can be no more than 14"

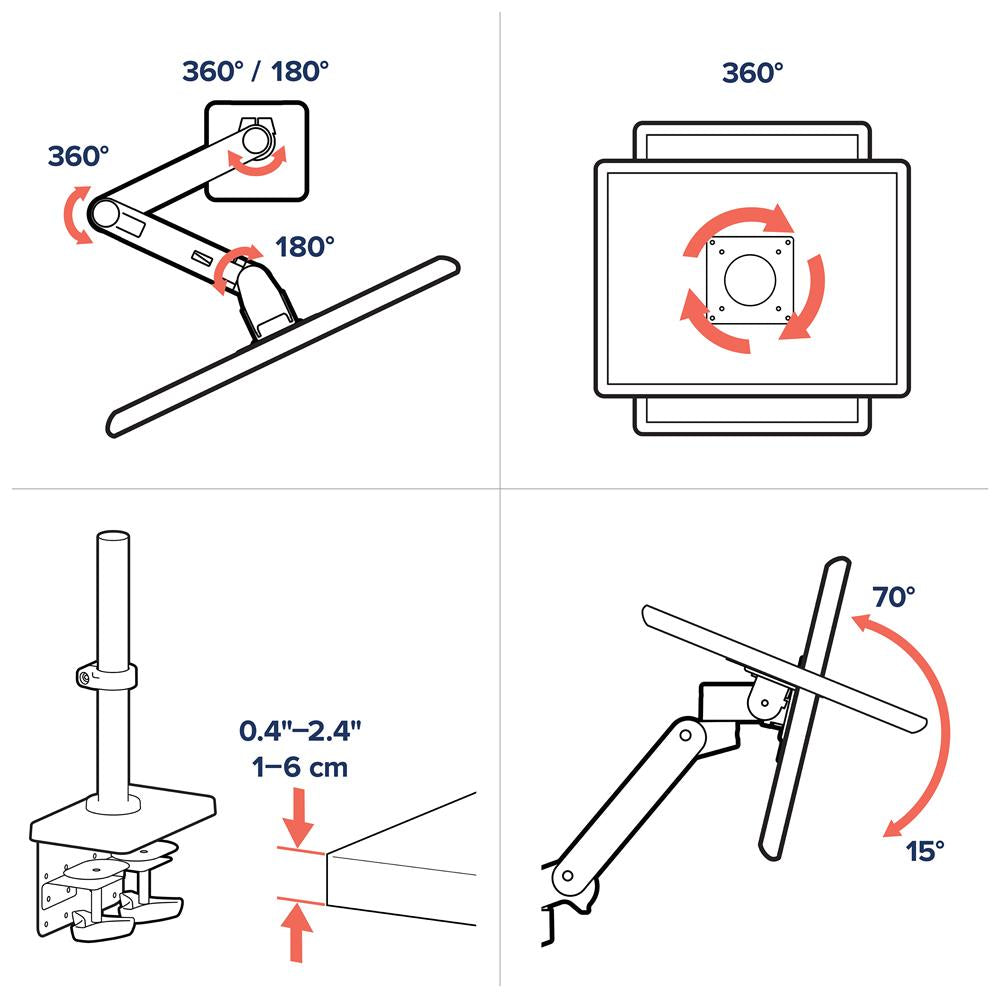

- ‡ Tilt Range: 70° backward, 15° forward
- § Overall side-to-side panning motion is 360°, with 3 turning points at base/extension (360°), extension/arm (360°), and arm/pivot (180°). Motion at the base/extension point can be restricted to 180° by engaging the built-in rotation stop

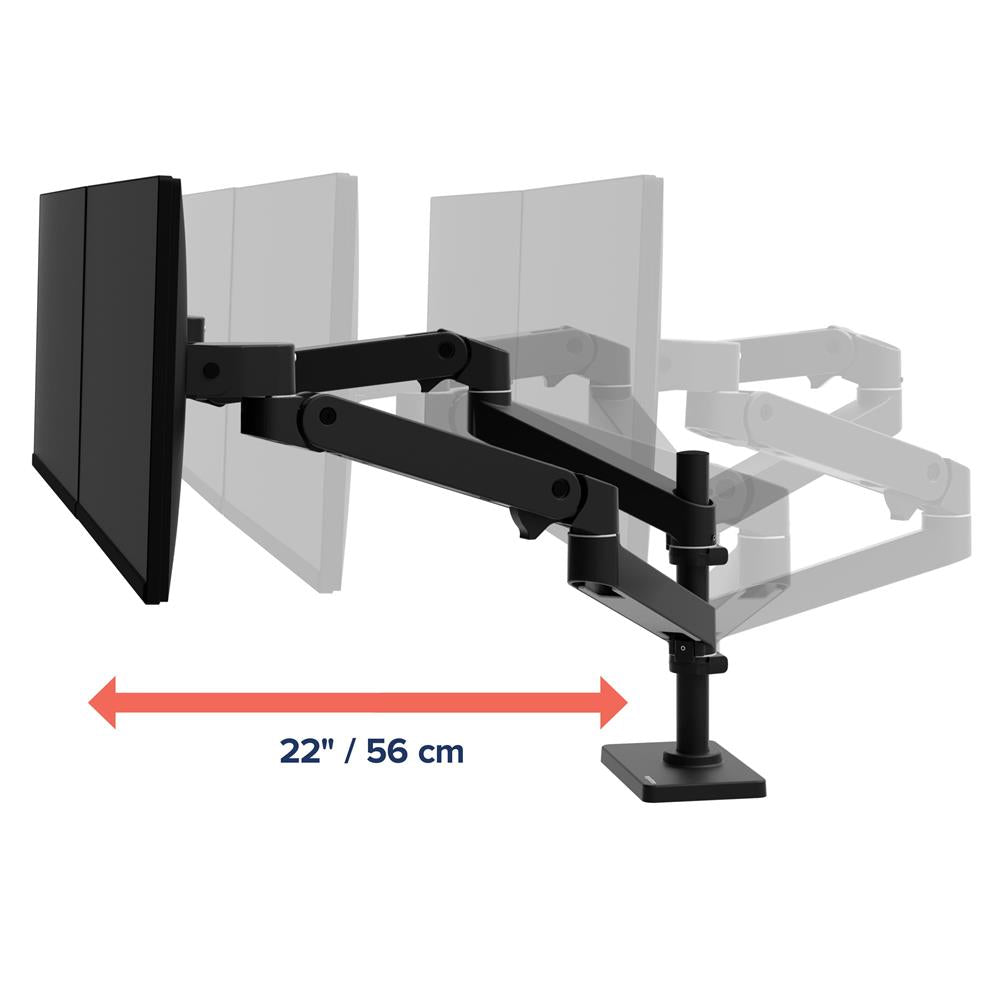

- Extension Range: ≤ 25" (64 cm)
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Product Weight: 13.5 lbs.
